Polyester Woven Belts

Products Details

Strapping, also known as bundling and banding, is the process of applying a strap to an item to combine, hold, reinforce, or fasten it.

Perfect for bundling as they can be re-tensioned in case of volume loss in the packaged goods and has a high breaking load, linear and within the system.

We provide our woven strapping belts with a width from 13 mm to 25 mm and a traction force of 470 to 2400 daN within a system.

Baling Press ( BP )

On this woven strapping belts we apply a special glue coating to make it sticky.

This will prevent an uncontrolled unwinding from the coil and make this product perfect for the usage in automatic baling press machines.

no damage to most surface
no corrosion & easy handling
low investment cost
high shock absorption
a small, manageable system
limited resistance against lye and acids
no risk of injury for shippers and consignees in using or opening the strapping
available width 13mm to 25mm
linear breaking strength available from 295 to 1500 daN

Advantages:

Available types :

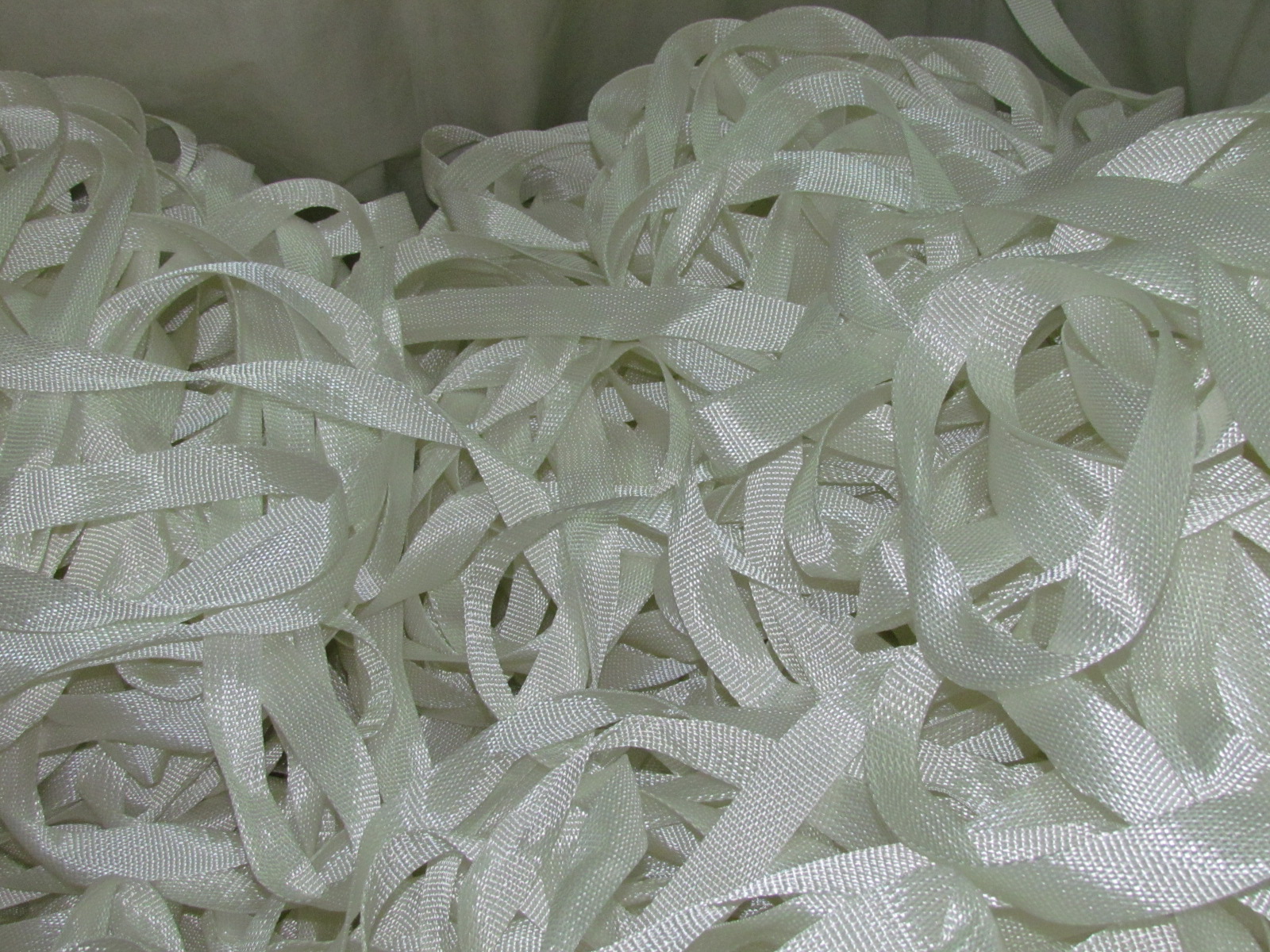

Woven strapping and lashing belts are made of high tensile polyester yarns.

Due to its material characteristics it has low elongation (below 10%), is highly tear proof and absorbs very little moisture.

Woven strapping belts do not splice and are flexible and universally applicable.

Our competent sales team will be happy to assist you in choosing the right strapping band and the matching accessories.

Woven Strapping

G40L - 13mm, 295/450 daN, 1200m coil

G40 - 13mm, 375/600 daN, 1100m coil

G50L - 16mm, 350/550 daN, 914m coil

G50 - 16mm, 450/720 daN, 850m coil

G55 - 16mm, 600 daN, 600m coil

G76 - 19mm, 1270 daN, 400m coil

G75 - 19mm, 1100 daN, 500m coil

G60 - 19mm, 580/900 daN, 600m coil

G60L - 19mm, 430/650 daN, 640m coil

G65 - 19mm, 750/1100 daN, 500m coil

G74 - 19mm, 830 daN, 500m coil

G85 - 25mm, 1000/1600 daN, 500m coil

G86 - 25mm, 1200/1900 daN, 500m coil

Woven Strapping Bailing Press

G30BP - 9mm, 275 daN, 500m coil

G40BP - 13mm, 375 daN, 350m coil

G44BP - 13mm, 500 daN, 300m coil

G50BP - 16mm, 450 daN, 250m coil

G75BP - 19mm, 1100daN, ORANGE, 500m coil

G60BP - 19mm, 580 daN, 300m coil

G65BP - 19mm, 750 daN, 300m coil

G75BP - 19mm, 1100daN, 300m coil

* more available types at www.oemserv.com

** table shows linear and system strength

*** system strength is always subject to used buckle type
and other application circumstances.

Polyester Woven Strapping

Polyester Woven Lashing

Lashing is an arrangement of rope or belt used to secure two or more items together in a somewhat rigid manner.

One-way cargo securing strapping with a high tensile strength is an economic and easy to handle alternative for conventional tension belts and / or complex wooden crates for load securing. The usage of lashing is steadily increasing as a method for load securing on flat racks and in containers.

Advantages:
